Hospital Bed Head Panels

  • MT-HBP-Type B Hospital Bed Head Panels

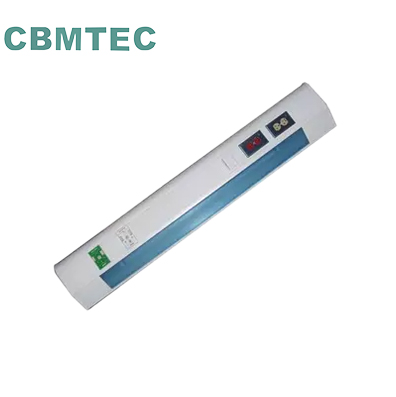

MT-HBP-Type B Hospital Bed Head Panels

MT-HBP-Type B Hospital Bed Head Panels

  • Length :Customerized
  • Specification :CE, ISO
  • HS Code: 90330000
  • Origin :China
  • Description: Hospital Bed Head Panels for Medical Gas Supply System products,  Hospital Wall Mounted Bed Head Panel, Bed Head  Console,  Bed Head Board, Medical Bed Head Unit for Operating Theatre Rooms & Hospital
  • INQUIRY   EMAIL

Product Description
-Knock-down structure;
-Extruded by great tonnage hydraulic equipment;
-Thickness of the surface panel:2mm'
-Designed in accordance with HTM2022 standard;
-Each bed head unit has four cavities for different pipelines.
-The surface of the bed head unit can be painted into different colors according to your requests by using
static-electricity-painting technology. Different parts can be painted into different colors.
-The bed head unit has enough inner space to install medical gas outlets, lamps, electrical switches
and some other equipments;
-The lamp cover for the light cavity is made of special transparent plastic for medical use and customers
can choose the length;
-Gas outlets of different standards are available. We can also provide electrical switches and electrical
sockets of British standard, American standard and etc..
-Electric equipments can be installed on the surface of bed head units or hidden under the surface.
-The surface board can be pressed and clasped with the unit so that it can be easily disassembled
when needed.
-This type of bed head unit can either be fixed to the wall through screws or be hung on the wall.
*Main Features:
-Practical internal design and elegant in appearance;
-Customerized length;

Material

Made of strong alumiun alloy

Certificate

ISO9001, ISO13485, CE

Length (OPTIONAL)

1m/1.5m/1.8m/1.2m or as required.

Color(OPTIONAL)

white for standard ,also can be chosen as per required.

Weight

4.85kg/m

Dementions

343(W)mmx70(D)mmx length
(To-be-confirmed)

Voltage

110V 60HZ / 220V 50HZ(To-be-confirmed)

Optional  Illumination

Indirect light :28w,32w;direct light:18w,28w;night light:8w
(To-be-confirmed)

Test pressure

10 BAR

Gas installation
(OPTIONAL)

O2; N2O; VAC; AIR,and etc.
( US,DIN,British,french standard,OPTIONAL)

Configulation

Body of BHU made of alumium alloy ,colored;
Indirect light :28w,32w;direct light:18w,28w;night light:8w;
switch-single / double;electric socket :single / double;
telephone outlet; interlet outlet; grounding jack; nurse call;
medical gas outlet--O2 , VAC , Air , N2O

Nurse call

Available

Service

We provide two years quality guarantee within 24 hours to reply

Packaging

Each with plastic bag then in carton with safety packing way

Transport
(Lead Time)

Short delivery time (generally 15 days)

Advantages

*OEM welcome;

*Samples can be provided;

*ODM  available;

*Competitive price under scale economy;

*All products are made of original material, made by our ownself.

*About Us:

We are a professional manufacturer and supplier of Gas Cylinders Regulators, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Trolleys, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.
*Advantages :
-1).Original Manuacturer: Being a professional manufacturer, we have professional equipments for our manufactureing products, including Punch Machines, CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000PCS of Medical Oxygen Flowmeters each month;
-3)Quality Control: With ISO13485 Quality Management system; All products have been tested before out of factory;
