Precision-machined brass
Main components are described as brass, precision-machined using CNC equipment.
Medical Gas Equipment
Medical Oxygen Regulator with Flowmeter & Humidifier
A cylinder-mounted oxygen regulator designed to provide pressure regulation, adjustable flow indication and humidification in one integrated assembly.
O₂ Medium1–10 / 1–15 LPM optionsMultiple models
Explore the product features, available model series and supplier-provided technical specifications below.

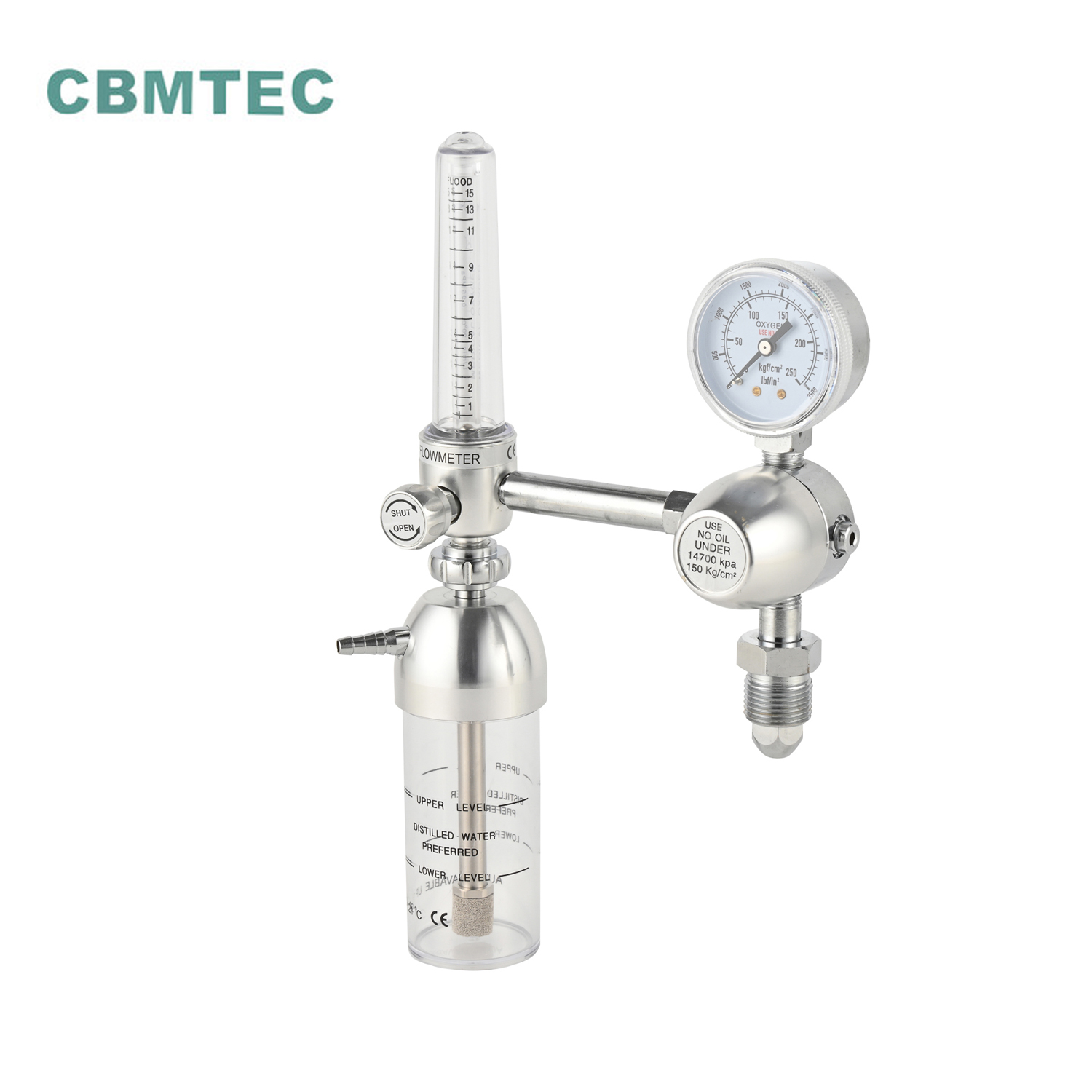

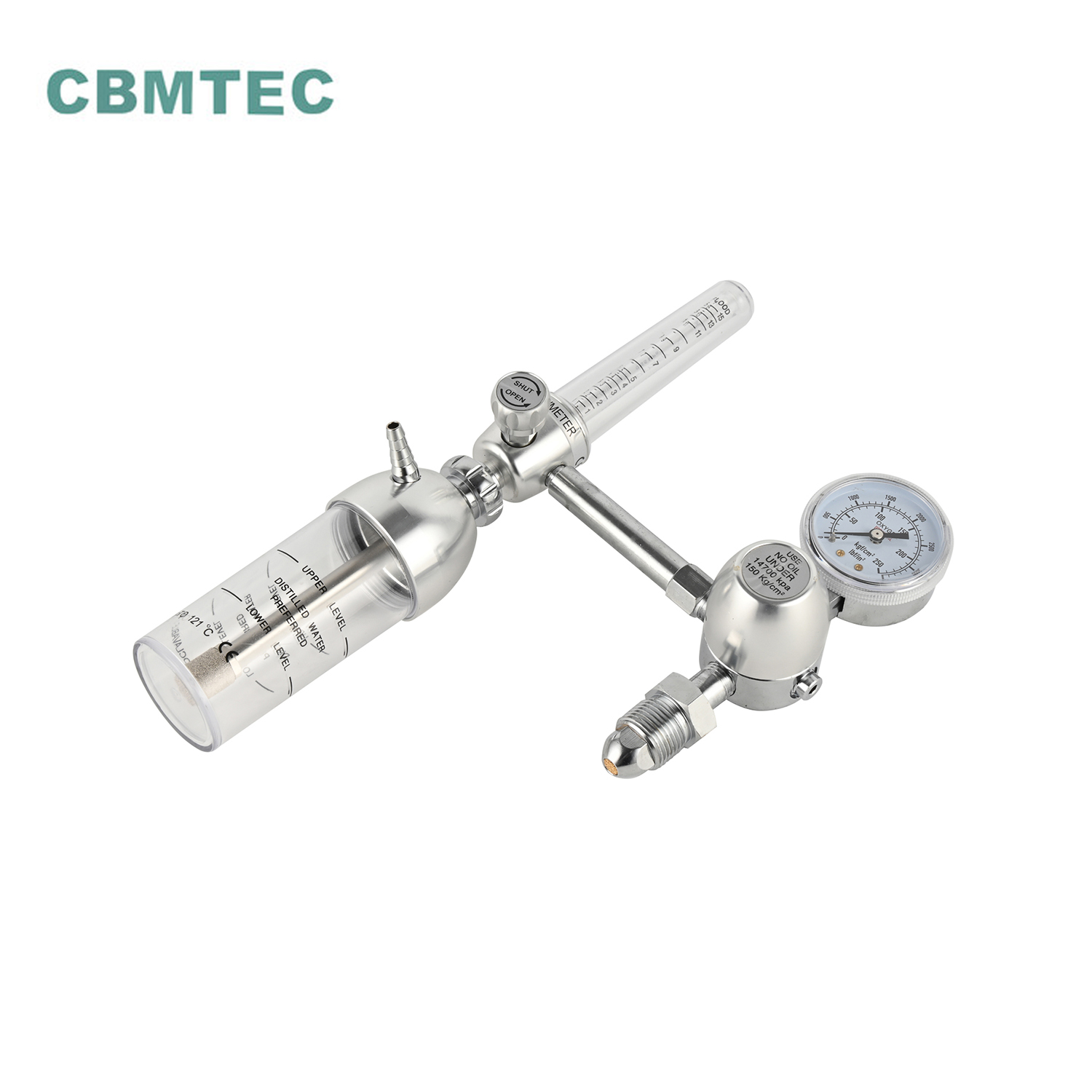

Product image supplied for this listing. Confirm the exact configuration and model before ordering.
O₂Specified gas medium
0.35 MPaListed inlet pressure
1–10 / 1–15 LPMFlow range options
24 modelsModel list provided
Designed for practical use
Product Details & Features
The following feature descriptions are based on the information supplied for this product listing. Confirm model-specific details with the manufacturer before publication or purchase.
Cylinder compatibility
Extended inlet-valve lever is designed to accommodate different oxygen-cylinder capacities.
Integrated flowmeter
Integrated casting design with a long-stroke flow switch.
Wear-resistant valve plug
Stainless-steel spool/valve plug specified for wear resistance.
Durable transparent components
Flow tube and humidifier cup use high-strength polycarbonate, according to the supplied details.
Humidifier sterilization claim
Supplier-provided details state a maximum of 121°C and 0.142 MPa; confirm the validated sterilization procedure before use.
Technical overview
Product Specifications
Review the listed operating parameters and connection details. Specifications may vary by model or destination-market configuration.
| No. | Model | Medium | Flow Range | Accuracy | Inlet Pressure | Output Connection Thread |
|---|---|---|---|---|---|---|
| 1 | LYX-A3201H2 | O₂ | 1–10 / 1–15 LPM | Grade 4 | 0.35 MPa | 8 mm |
| 2 | LYX-A3202H2 | O₂ | 1–10 / 1–15 LPM | Grade 4 | 0.35 MPa | 8 mm |
| 3 | XF-A3001 | O₂ | 1–10 / 1–15 LPM | Grade 4 | 0.35 MPa | 8 mm |
| 4 | XF-A3002 | O₂ | 1–10 / 1–15 LPM | Grade 4 | 0.35 MPa | 8 mm |
| 5 | XF-A3003 | O₂ | 1–10 / 1–15 LPM | Grade 4 | 0.35 MPa | 8 mm |
| 6 | XF-A3004 | O₂ | 1–10 / 1–15 LPM | Grade 4 | 0.35 MPa | 8 mm |
| 7 | XF-A3005 | O₂ | 1–10 / 1–15 LPM | Grade 4 | 0.35 MPa | 8 mm |
| 8 | XF-A3006 | O₂ | 1–10 / 1–15 LPM | Grade 4 | 0.35 MPa | 8 mm |
| 9 | XF-A3007 | O₂ | 1–10 / 1–15 LPM | Grade 4 | 0.35 MPa | 8 mm |
| 10 | XF-A3008 | O₂ | 1–10 / 1–15 LPM | Grade 4 | 0.35 MPa | 8 mm |
| 11 | XF-A3009 | O₂ | 1–10 / 1–15 LPM | Grade 4 | 0.35 MPa | 8 mm |
| 12 | XF-A3010 | O₂ | 1–10 / 1–15 LPM | Grade 4 | 0.35 MPa | 8 mm |
| 13 | XF-A3011 | O₂ | 1–10 / 1–15 LPM | Grade 4 | 0.35 MPa | 8 mm |
| 14 | XF-A3012 | O₂ | 1–10 / 1–15 LPM | Grade 4 | 0.35 MPa | 8 mm |
| 15 | XF-A3013 | O₂ | 1–10 / 1–15 LPM | Grade 4 | 0.35 MPa | 8 mm |
| 16 | XF-A26001 | O₂ | 1–10 / 1–15 LPM | Grade 4 | 0.35 MPa | 8 mm |
| 17 | XF-A26002 | O₂ | 1–10 / 1–15 LPM | Grade 4 | 0.35 MPa | 8 mm |
| 18 | XF-A32001 | O₂ | 1–10 / 1–15 LPM | Grade 4 | 0.35 MPa | 8 mm |
| 19 | XF-A32002 | O₂ | 1–10 / 1–15 LPM | Grade 4 | 0.35 MPa | 8 mm |
| 20 | XF-A32003 | O₂ | 1–10 / 1–15 LPM | Grade 4 | 0.35 MPa | 8 mm |
| 21 | XF-A32004 | O₂ | 1–10 / 1–15 LPM | Grade 4 | 0.35 MPa | 8 mm |
| 22 | XF-A32005 | O₂ | 1–10 / 1–15 LPM | Grade 4 | 0.35 MPa | 8 mm |
| 23 | XF-A32006 | O₂ | 1–10 / 1–15 LPM | Grade 4 | 0.35 MPa | 8 mm |
| 24 | XF-A33001 | O₂ | 1–10 / 1–15 LPM | Grade 4 | 0.35 MPa | 8 mm |
Technical confirmation required: The supplied table lists “Output Connection Screw Thread” as 8 mm. Please confirm whether this means a tube connection size or a threaded specification, and confirm the applicable flow range and inlet-pressure requirements for the selected model.
Choose the configuration
Available Model Series
Twenty-four model numbers were included in the source information. Use the model number when requesting a quotation or confirming compatibility.
Model selection
- ✓LYX-A3201H2, LYX-A3202H2
LYX series listed in the supplied model table. - ✓XF-A3001 to XF-A3013
XF-A3000 series model range. - ✓XF-A26001, XF-A26002
XF-A26000 series models. - ✓XF-A32001 to XF-A32006
XF-A32000 series model range. - ✓XF-A33001
Additional listed model.
Before placing an order
- 01Confirm the exact model and required flow range.
- 02Verify cylinder inlet compatibility and outlet connection.
- 03Request the current datasheet, applicable certificates and instructions for use.
- 04Confirm cleaning, disinfection and sterilization instructions for the exact configuration.
About the supplier
CBMTEC Product & Manufacturing Profile
Company profile and capability statements below reflect the supplied source copy and should be verified against current company documentation.
About Us
CBMTEC describes its business as manufacturing and supplying gas cylinder regulators, oxygen flowmeters, medical oxygen flow regulators and kits, oxygen intake devices, gas valves, medical pin-index valves, medical gas supply system products, cylinder carts and trolleys, gas outlets, ceiling medical pendants and related medical gas and respiratory products.
50,000+Monthly flowmeter output claimed in supplied copy
ISO 13485Quality system referenced in supplied copy
50 pcsMOQ stated in supplied copy
Supplier-stated advantages
- Manufacturing equipment including punch and CNC machines.
- Multiple product series for different market requirements.
- Pre-dispatch product testing, as stated by the supplier.
- Export experience and mixed-product sourcing support.
- Competitive pricing and after-sales support, subject to confirmation.
Additional information
Options & Supply Notes
- Different types of seamless steel or aluminium gas cylinders, cylinder valves and flowmeter regulators may be available as options.
- The supplied company profile mentions mixed requirements for high-pressure steel gas cylinders for gases including oxygen, helium, argon, carbon dioxide and nitrogen, as well as dissolved acetylene cylinders, regulators and cylinder carts.
- Confirm available sizes, pressure ratings, standards, minimum order quantity, delivery lead time and destination-country requirements with the supplier before placing an order.
Important: This page is a product-information layout, not a substitute for the official instructions for use. Medical gas equipment must be selected, installed, cleaned and used according to the manufacturer's validated documentation and applicable local requirements. Do not infer regulatory approval or clinical suitability from this page alone.
